STC2016

Features

  • Ultra miniature and thin SMD crystal. (2.0 × 1.6 × 0.45 mm)
  • High precision and high reliability
  • High quality quartz crystal unit for OA (office automation), AV (audiovisual), Bluetooth and Wireless LAN applications.

Standard Specification

specification
Model
Item
STC2016
Frequency Range 20 ~ 80MHz
Package size (L×W×H: mm) 2.0×1.6×0.45
Vibration mode Fundamental
Frequency tolerance(at 25℃) ±15ppm
Frequency stability vs Operation
temperature range
±15ppm / -20 ~ +70℃ (Ref. to 25℃)
±25ppm / -40 ~ +85℃ (Ref. to 25℃)
Series Resistance 100Ω max (20~24MHz)
80Ω max (24 ~ 26MHz)
60Ω max (26 ~ 80MHz)
Load capacitance Series, 8pF, 10pF, (As user spec)
Drive level Typical 10㎼ (100㎼ max)
Storage Temperature Range -40 ~ +85℃
Aging ±3ppm / year Maximum
Packing Unit 3,000pcs / reel

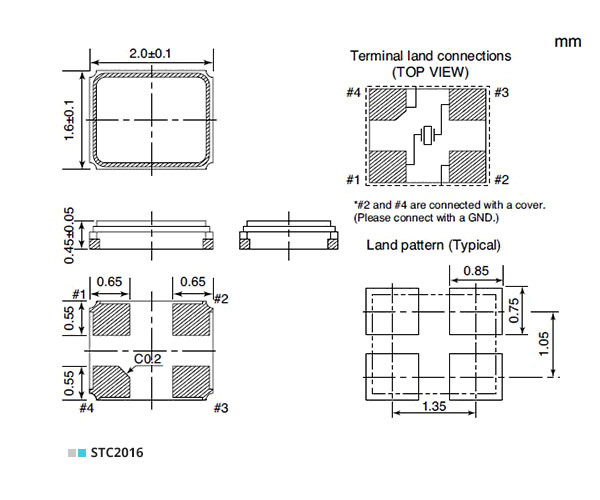

Dimensions[mm]
