STC5032
Features
- Compact and thin SMD crystal. (5.0 × 3.2 × 0.90 mm)
- High precision and high reliability
- High quality quartz crystal unit for mobile telecommunications, OA (office automation), AV (audiovisual)
Standard Specification
Model Item |
STC5032 |
---|---|
Frequency Range | 12 ~ 40MHz |

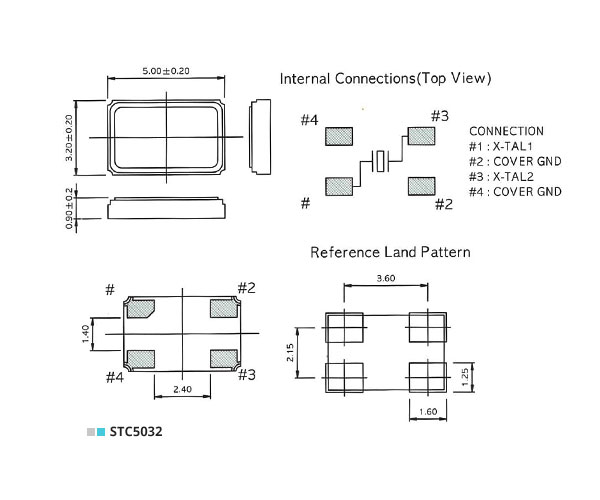

Package size (L×W×H: mm) | 5.0 × 3.2 × 0.90 |
Vibration mode | Fundamental |
Frequency tolerance(at 25℃) | ±10ppm |
Frequency stability vs Operation temperature range |
±10ppm / -20 ~ +70℃ (Ref. to 25℃) |
±10ppm / -40 ~ +85℃ (Ref. to 25℃) | |
Series Resistance | 40Ω max |
Load capacitance | 10pF, 12pF, (As user spec) |
Drive level | Typical 10㎼ (100㎼ max) |
Storage Temperature Range | -40 ~ +85℃ |
Aging | ±3ppm / year Maximum |
Packing Unit | 1,000pcs / reel |
