STC6035

Features

  • Compact and thin SMD crystal. (6.0 × 3.5 × 1.00 mm)
  • High precision and high reliability
  • High quality quartz crystal unit for mobile telecommunications as well as many other applications

Standard Specification

specification
Model
Item
STC6035
Frequency Range 8 ~ 40MHz 40 ~ 67MHz
Package size (L×W×H: mm) 6.0 × 3.5 × 1.00
Vibration mode Fundamental 3rd overtone
Frequency tolerance(at 25℃) ±10ppm
Frequency stability vs Operation
temperature range
±10ppm / -20 ~ +70℃ (Ref. to 25℃)
±25ppm / -40 ~ +85℃ (Ref. to 25℃)
Series Resistance 150Ω max (8~9MHz), 80Ω max (9~12MHz)
60Ω max (12~16MHz), 40Ω max (16~40MHz)
70Ω max (40~67MHz)
Load capacitance Series, 16pF, 18pF, (As user spec)
Drive level Typical 100㎼
Storage Temperature Range -40 ~ +85℃
Aging ±3ppm / year Maximum
Packing Unit 1,000pcs / reel

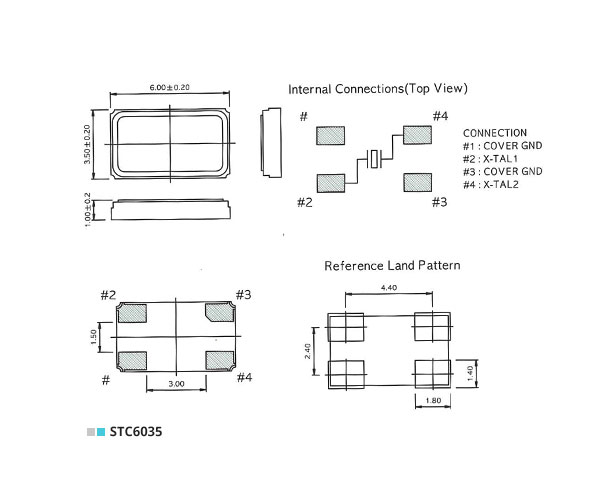

Dimensions[mm]
