STTC2520
Features
- Ultra miniature and thin SMD crystal. (2.5 × 2.0 × 1.0 mm)
- High precision and high reliability
- Excellent Solderability
Standard Specification
Model Item |
STC2520 | |
|---|---|---|
| Norminal Frequency | 19.200MHz | 26.000MHz |
| Frequency Tolerance | ±10ppm (at 25℃) | |
| Frequency Stability | ±12ppm (Ref. to 25℃) | |
| Operating Temperature Range |
-30℃ ~ +85℃ / -30℃ ~ +105℃ | |
| Drive Level (max.) | 50µW typ. (100µW max.) | |
| Mode of Oscillation | Fundamental | |
| Load Capacitance(CL) | 7pF | 7pF / 9pF |
| Effective Series Resistance | 70Ω | 27Ω |
Thermistor Specifications
| Parameter | Min. | Nom. | Max. | Units. | Notes. |
|---|---|---|---|---|---|
| Operating Temperature Range |
-30 | 105 | ℃ | ||
| Storage Temperature Range |
-40 | 105 | ℃ | ||
| Resistance | 100 | KΩ | 25℃ | ||
| B-Constant | 4,250 | K | 25-50℃ | ||
| Tolerance | -1.0 | +1.0 | % |

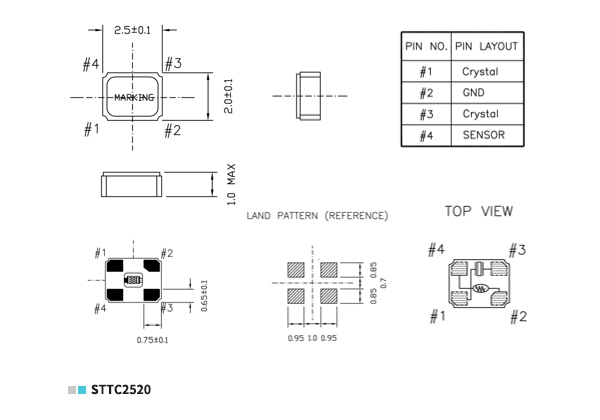

Dimensions[mm]
