TFS315(Tuning Fork)

Features

  • 3215 size miniature and thin SMD crystal. (3.2 × 1.5 × 0.65 mm)
  • High precision and high reliability
  • High quality quartz crystal unit for mobile communications, PDA, wave clock, digital appliance

Standard Specification

specification
Model
Item
TFS315(Tuning Fork)
Frequency Range 32.768KHz
Package size (L×W×H: mm) 3.2 × 1.5 × 0.65
Frequency tolerance(at 25℃) ±20ppm
Frequency stability vs Operation
temperature range
±20ppm / -20 ~ +70℃ (Ref. to 25℃)
±20ppm / -40 ~ +85℃ (Ref. to 25℃)
Series Resistance 80KΩ max
Load capacitance 9pF, 12.5pF
Drive level 0.5㎼ max
Storage Temperature Range -40 ~ +85℃
Aging ±5ppm / year Maximum
Packing Unit 3,000pcs / reel

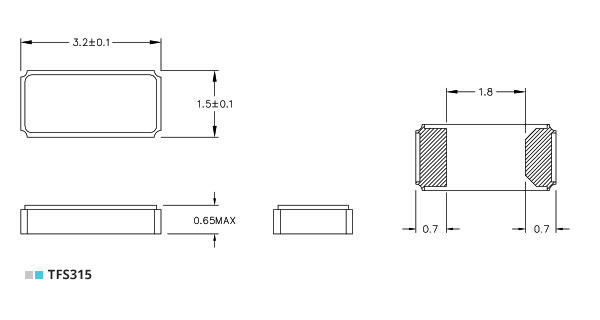

Dimensions[mm]
