STS2520
Features
- Compact and light SMD crystal oscillator.
- High reliability seam welded package and low supply voltage version available
- Applications : PC, PDA, DVD, TV, camera module, etc.
Standard Specification
Model Item |
STS2520 | Unit | Limit | |
|---|---|---|---|---|
| Frequency Range | 1.5 ~ 80MHz | MHz | ||
| Package size (L×W×H:mm) | 2.5×2.0×1.0 | mm | ||
| Supply voltage | +1.8 ~ +3.3 | V | ±5% | |
| Operating temp. range | -40~+125/-40~+105/-20~+70 | ℃ | ||
| Storage Temp. range | -55 ~ +125 | ℃ | ||
| Frequency stability (Operation) | ±100 / ±50 / ±30 / ±20 | ppm | ||
| Load | 15 | pF | Max | |
| Current Consumption | 9 | mA | Max | |
| Output | Level | CMOS | ||
| ‘0’ Level (V ol) | 0.1 Vcc | Vcc | Max | |
| '1' Level (V oh) | 0.9 Vcc | Vcc | Min | |
| Rise&Fall Time | 10 | ㎱ | Max | |
| Start up time | 10 | ㎳ | Max | |
| Standby function | Available (Tri-state) | |||

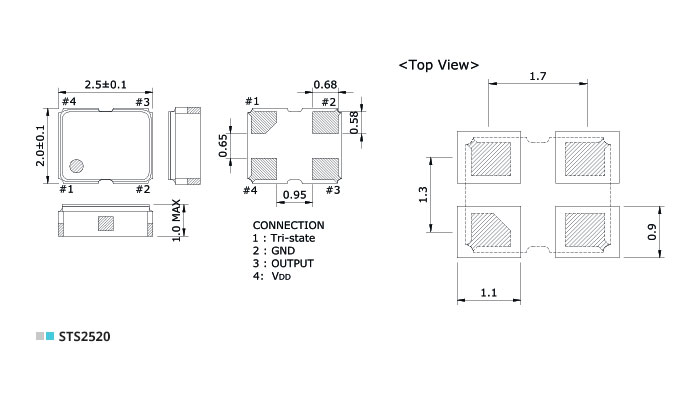

Dimensions[mm]
