STDX2016 Series
![](./../img/sub/products/pro_stdx2520.png)
Features
- High frequency stability
- Low supply voltage and Low power consumption available
- High reliability
- Ultra Miniature size
![](./../img/sub/products/logo_rohs.png)
![](./../img/sub/products/logo_pbfree.png)
Description
The STDX2016 Series (Voltage Control)Temperature compensated crystal oscillator achieves superb stability over a broad range of operating conditions and frequencies. The device is available on tape and reel, is contained in a 2.0 x 1.6mm surface-mount ceramic package.
Application
Suitable for cell phone, base station, GPS and mobile radio application,Radio.
Standard Specification
Model Item |
STDX2016 Series |
---|---|
Frequency Range | 19.2M, 26M |
Frequency Stability | ±1.0ppm ~ ±2.5ppm |
Operating Temperature Range | -40℃ ~ 85℃ / -20℃ ~ 70℃ / 0℃ ~ 70℃ |
Storage Temperature Range | -40℃ ~ 85℃ |
Supply Voltage | 2.5V ~ 3.6V ± 5% |
Supply Current | 2.5mA Max.(C.S.W) / 5.0mA Max. |
Frequency Control Range | 1.25V±1.00VDC ~ 1.80±1.00VDC |
Output Load | 10Kohm//10pF(C.S.W), 1Kohm//15pF |
Output Voltage Level | 0.8Vpp (C.S.W) |
Start-up Time(90% of Vp-p) | 3.0ms Max. |
Aging | ±1ppm/Year |

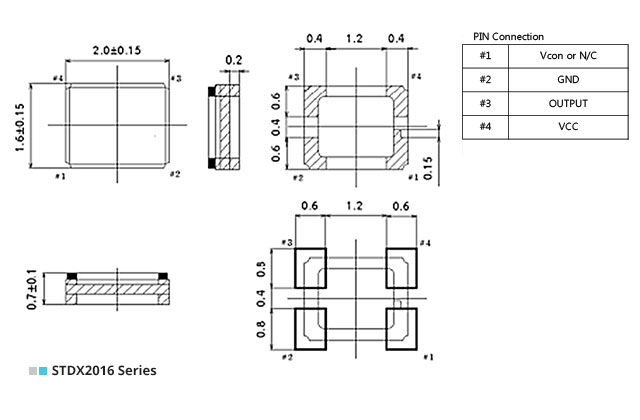

Dimensions[mm]
![](./../img/sub/products/pro3_stdx2016.jpg)
Measurement Circult
![](./../img/sub/products/pro3_me.jpg)
