STDX2520 Series
Features
- High frequency stability
- Low supply voltage and Low power consumption available
- High reliability
- Miniature size
- Applications : Suitable for cell phone, base station, GPS and mobile radio application
Description
The STDX2520 Series (Voltage Control)Temperature compensated crystal oscillator achieves superb stability over a broad range of operating conditions and frequencies. The device is available on tape and reel, is contained in a 2.5 x 2.0mm surface-mount ceramic package.
Standard Specification
Model Item |
STDX5032 Series |
|---|---|
| Frequency Range | 16.36M, 19.2M 24M, 24.576M, 26M, 30M, 32M, 38.4M, 40M |
| Frequency Stability | ±0.5ppm ~ ±2.5ppm |
| Operating Temperature Range | -40℃ ~ 85℃ / -20℃ ~ 70℃ / 0℃ ~ 70℃ |
| Storage Temperature Range | -40℃ ~ 85℃ |
| Supply Voltage | 2.5V ~ 3.6V ± 5% |
| Supply Current | 2.5mA Max.(C.S.W) / 5.0mA Max. |
| Frequency Control Range | 1.25V±1.00VDC ~ 1.80±1.00VDC |
| Output Load | 10Kohm//10pF(C.S.W), 1Kohm//15pF |
| Output Voltage Level | 0.8Vpp (C.S.W) |
| Start-up Time(90% of Vp-p) | 3.0ms Max. |
| Aging | ±1ppm/Year |

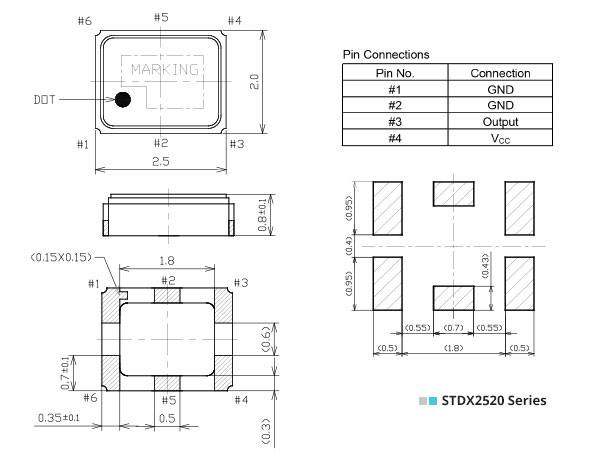

Dimensions[mm]
Measurement Circult
