STDX3225 Series
![](./../img/sub/products/pro_stdx3225.png)
Features
- High frequency stability
- Low supply voltage and Low power consumption available
- High reliability
- Applications : Suitable for cell phone, base station, GPS and mobile radio application, Radio
![](./../img/sub/products/logo_rohs.png)
![](./../img/sub/products/logo_pbfree.png)
Description
The STDX3225 Series (Voltage Control)Temperature compensated crystal oscillator achieves superb stability over a broad range of operating conditions and frequencies. The device is available on tape and reel, is contained in a 3.2 x 2.5mm surface-mount ceramic package.
Standard Specification
Model Item |
STDX3225 Series |
---|---|
Frequency Range | 6.000MHz ~ 52.000MHz |
Frequency Stability | ±1.0ppm ~ ±2.5ppm |
Operating Temperature Range | -40℃ ~ 85℃ / -20℃ ~ 70℃ / 0℃ ~ 70℃ |
Storage Temperature Range | -40℃ ~ 85℃ |
Supply Voltage | 1.8V ~ 3.5V ± 5% |
Supply Current | 2.5mA Max.(C.S.W) / 5.0mA Max.(HCMOS) |
Frequency Control Range | 1.25V±1.00VDC ~ 1.80±1.00VDC |
Output Load | 10Kohm//10pF(C.S.W), 1Kohm//15pF(HCMOS) |
Output Voltage Level | 0.8Vpp (C.S.W) 80%min. 0.5Vmax. (HCMOS) |
Duty | 40 ~ 60% |
Start-up Time(90% of Vp-p) | 3.0ms Max. |
Aging | ±1ppm/Year |

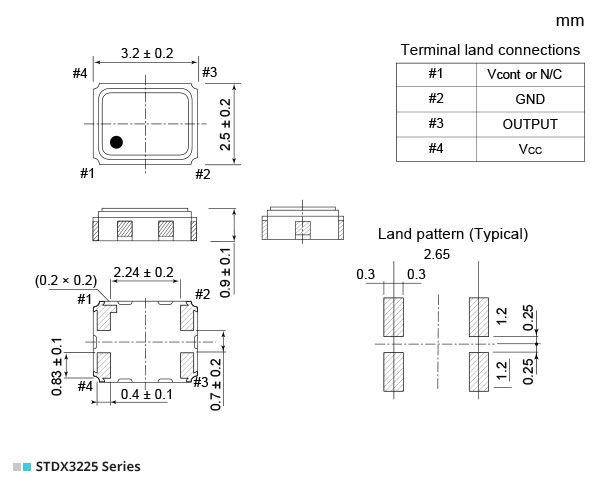

Dimensions[mm]
![](./../img/sub/products/pro3_stdx3225.jpg)

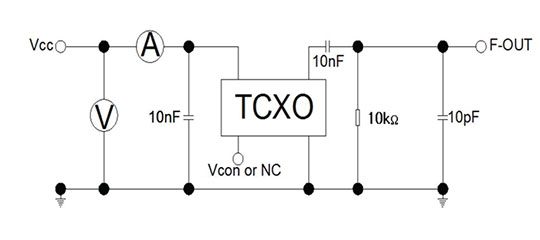

Measurement Circult
![](./../img/sub/products/pro3_me.jpg)
