STPVX5,STLPX5
![](./../img/sub/products/pro_vcxo.png)
Features
- 2.5V or 3.3V Operaing supply voltage
- Differential output LVPECL, LVDS
- 3-state function
- Excellent low phase jitter
- Applications : Server, SONET, SDH, Optical transmission device, Communication base station
![](./../img/sub/products/logo_rohs.png)
![](./../img/sub/products/logo_pbfree.png)
Standard Specification
Model Item |
STPVX5 | STLPX5 | Unit | Limit | |
---|---|---|---|---|---|
Frequency Range | 50~600MHz(Fund) 50 ~ 220MHz(3rd overtone) |
MHz | |||
Package size (L×W×H) | 5.0×3.2×1.2 | mm | |||
Supply voltage | 2.5 or 3.3 | V | ±5% | ||
Operating temp. range | -40 ~ +85 | ℃ | |||
Storage Temp. range | -55 ~ +125 | ℃ | |||
Frequency Stability (overall) | ±50 , ±100 | ppm | Max | ||
Frequency deviation | ±100 | % | |||
Control voltage | 1.25±1.05(1.25) , 1.65 ±1.35(1.65) | % | |||
Duty cycle | 40 ~ 60 (at outputs cross point) | % | |||
Output load | 50 to Vcc-2V | 100 (out-complementary out) |
Ω | ||
Current Consumption | 80 | 60 | mA | Max | |
Output | Level | LVPECL | LVDS | ||
‘0’ Level (V ol) | Vcc-1.81 ~ Vcc-1.62 | Vcc | Max | ||
'1' Level (V oh) | Vcc-1.025 ~ Vcc-0.88 | Vcc | Min | ||
Rise&Fall Time | 1 | ㎱ | Max | ||
Phase jitter | 1 (offset frequency:12kHz~20MHz) | ps | Max |

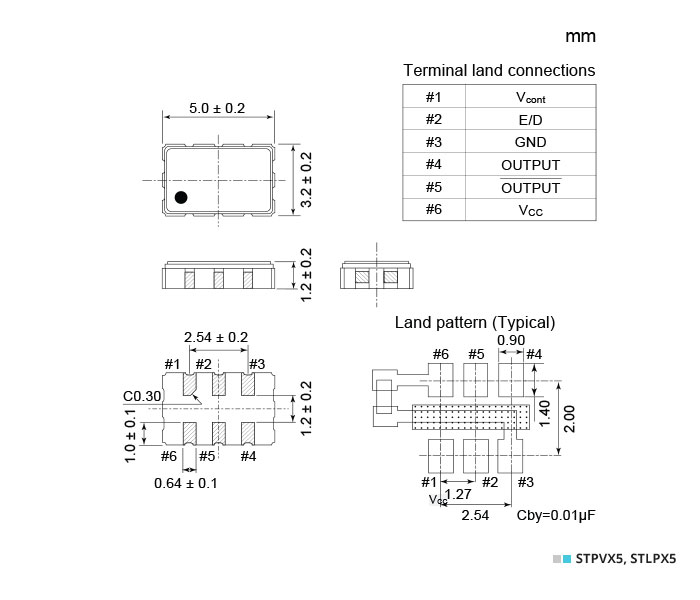

Dimensions[mm]
![](./../img/sub/products/pro6_stpvx5.jpg)

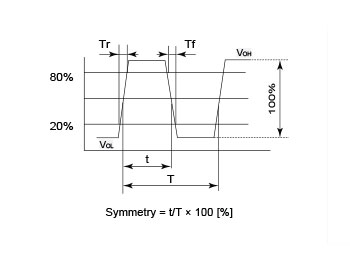

Output waveform (LVPECL)
![](./../img/sub/products/pro6_wave1.jpg)

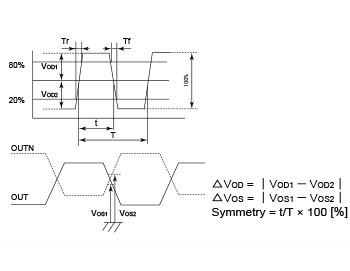

Output waveform (LVDS)
![](./../img/sub/products/pro6_wave2.jpg)
Stand-by Function (LVPECL)
![](./../img/sub/products/pro6_func1.jpg)
Stand-by Function (LVDS)
![](./../img/sub/products/pro6_func2.jpg)
