STPVX7, STLVX7
Features
- 2.5V or 3.3V Operaing supply voltage
- Differential output LVPECL, LVDS
- 3-state function
- Excellent low phase jitter
- Applications : Server, SONET, SDH, Optical transmission device, Communication base station
Standard Specification
Model Item |
STPVX7 | STLVX7 | Unit | Limit | |
|---|---|---|---|---|---|
| Frequency Range | 50~600MHz(Fund) 50~400MHz(3rd overtone) |
80~600MHz(Fund) 80~400MHz(3rd overtone) |
MHz | ||
| Package size (L×W×H) | 7.0×5.0×1.7 | mm | |||
| Supply voltage | 2.5 or 3.3 | V | ±5% | ||
| Operating temp. range | -40 ~ +85 | ℃ | |||
| Storage Temp. range | -55 ~ +125 | ℃ | |||
| Frequency Stability (overall) | ±50 , ±100 | ppm | Max | ||
| Frequency deviation | ±100 | % | |||
| Control voltage | 1.25±1.05(1.25) , 1.65 ±1.35(1.65) | % | |||
| Duty cycle | 40 ~ 60 (at outputs cross point) | % | |||
| Output load | 50 to Vcc-2V | 100 (out-complementary out) |
Ω | ||
| Current Consumption | 80 | 60 | mA | Max | |
| Output | Level | LVPECL | LVDS | ||
| ‘0’ Level (V ol) | Vcc-1.81 ~ Vcc-1.62 | Vcc | Max | ||
| '1' Level (V oh) | Vcc-1.025 ~ Vcc-0.88 | Vcc | Min | ||
| Rise&Fall Time | 1 | ㎱ | Max | ||
| Phase jitter | 1 (offset frequency:12kHz~20MHz) | ps | Max | ||

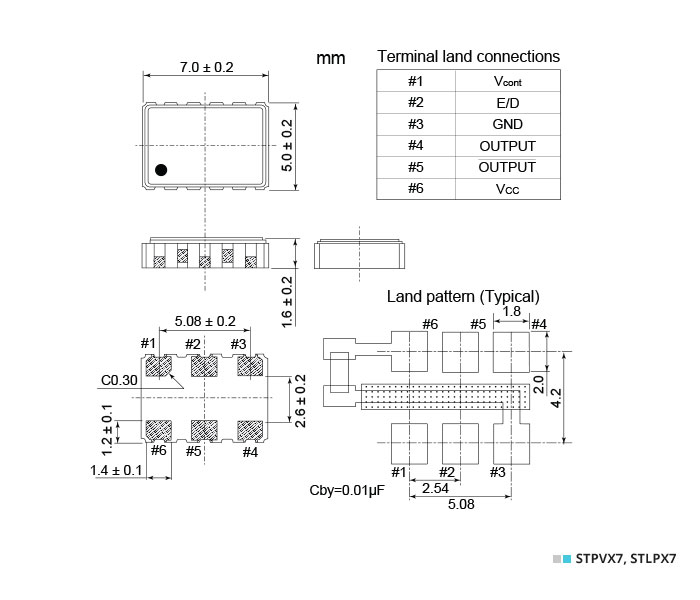

Dimensions[mm]
Output waveform (LVPECL)
Output waveform (LVDS)
Stand-by Function (LVPECL)
Stand-by Function (LVDS)
