STOC01,STOC02
Features
- high stability oven controlled crystal oscillator
Standard Specification
Model Item |
STOC01 | STOC02 | |
|---|---|---|---|
| Frequency range | 5~100MHz | ||
| Standard Frequency | 5, 10, 8.192, 13, 16.384, 26, 38.88MHz | ||
| Frequency Stability |
vs Operation Temp. Range | ±5×10-9 , Stability Code | |
| vs Vcc Change ±5% | ±2×10-9 | ||
| vs Load Change ±10% | ±5×10-9 | ||
| vs Aging | ±5×10-8/year ±5×10-10/day |
±2×10-7/year ±1×10-9/day |
|
| Operation Temperature Range | -40~+70℃ | -10~+55℃ | |
| Supply Voltage | 5V, 9V, 12V,(option code) | ||
| Current Consumption | 400mA max at Turn-on,120mA max after warm up at 25℃ | ||
| Short Term Stability(Allen Std Deviation) | ±3×10-11/ s | ||
| Output | See Table 2 | ||
| SSB Phase Noise (10MHz, typical) |
-115dBc@10Hz | -100dBc@10Hz | |
| -130dBc@100Hz | -120dBc@10Hz | ||
| -150dBc@100Hz | -140dBc@10Hz | ||
| -155dBc@100Hz | -150dBc@10Hz | ||
| Warm-up Time@25℃ Typical | ±5×10-8after 10 minutes | ||
| Non-Harmonic Suppression | ±7×10-7 | ±2ppm | |
| SSB Phase Noise (10MHz, typical) |
±7×10-7 | ±2ppm | |
| Package | 36A | ||
| Storage Temperature Range | -40~+85℃ | ||

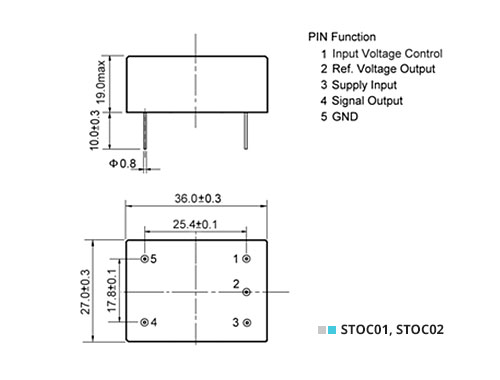

Dimensions[mm]
